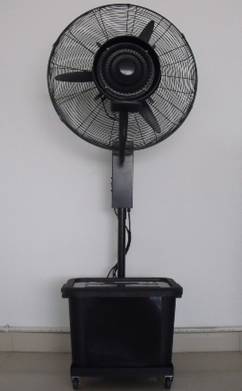

water mist fan

　MODEL ：ZW10W-26STA

 water mist fan water mist fan

  Moveable design with wheels

　OPTIONAL CONTROL MODE

  Dual control mode

  Manual control mode only

　CERTIFICATE      (On going)

RoHS

ISO9001: 2008

Vol(VAC)

Freq(Hz)

Power(Watt)

Speed(RPM)

Airflow(m3/h)

Noise(dB)

Remark

220-240

50/60

165-230

1080-1350

5000-7500

53-69

3 speeds adjustable

100-120

50/60

165-230

1080-1350

5000-7500

53-69

　SPECIFICATION OF MIST SYSTEM PART

Mist system: Centrifugal mode
Mist capacity: Adjustable by water valve
Water tank: 36-40 liters unbreakable plastic tank
Continuance misting: 6-8 hours

Mist drop size: < 10μm
Available area: 30㎡
Available distance: 6m
Temperatures drop: 3oC-8oC

　SPECIFICATION OF FAN PART

Fan size:26”(650mm) Stand type
Material: metal (grill, housing, bracket, base)
Height: 1.70m, Mobile design with four wheels
Fan motor protection: Water drop proof

Speed: 3 Speeds Adjustable
Fan blade: Plastic
Tilt adjustable: 30 degrees up and dwon
Oscillation:90 degrees automatically

　PACKING



　CONTAINER

G.W.: 25.00KGS

N.W.: 23.00KGS

PACKAGE: 0.138CBM

2 CTNS/SET



20GP:190SETS

40HQ:480SETS

40GP:400SETS



Applications



Agribusiness

Poultry farms, horse stables, greenhouses, hydroponics, tobacco farming, flowers, etc.

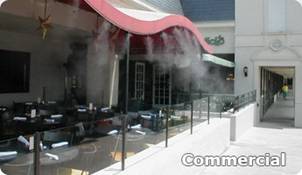

Food

Restaurants, bakeries, supermarkets, fruit stands, fish markets, etc.

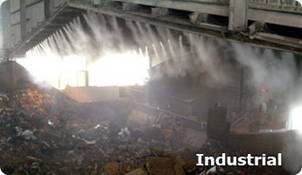

Industries

Metal-mechanic, plastics, petrochemical, foundry, rotomolding, vacuum, forming, shoemaking, electric-electronic, furniture, textile, pharmaceutical, leather tanning, confined spaces, etc.

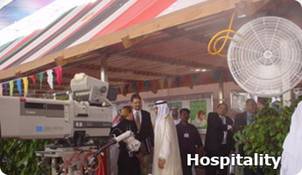

Services

Fitness centers, dry cleaners, print shops, schools, clubs, gymnasiums, saunas, pharmacies, parking lots, bars, night clubs, etc.



The Zouway 2010 Cooling System line in made up of 16 units that meet the needs of various market areas. It can be used both for household as well as business and industrial applications.
