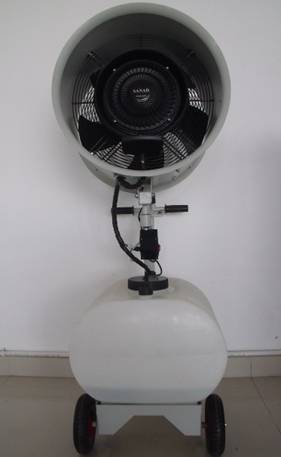

water mist fan

 MODEL ZW10W-20REA

water mist fanwater misting fan

  Moveable design with wheels

 OPTIONAL CONTROL MODE

  Dual control mode

  Manual control mode

 CERTIFICATE      (On going)

RoHS

ISO9001: 2008

Vol(VAC)

Freq(Hz)

Power(Watt)

Speed(RPM)

Airflow(m3/h)

Noise(dB)

Remark

220-240

50/60

350

1200-1400

6000-7000

63-76

 no speeds adjustable

100-120

50/60

350

1200-1400

6000-7000

63-76

 SPECIFICATION OF MIST SYSTEM PART

Mist system: High Pressue with 5 nozzles
Mist capacity: Adjustable by water valve
Water tank: 60 liters unbreakable plastic tank
Continuance misting: 4-6 hours

Mist drop size: < 10μm
Available area: 70

Available distance: 9m
Temperatures drop: 3oC-8oC

 SPECIFICATION OF FAN PART

Fan size:20”(500mm)
Material: metal (grill, housing, bracket, base)
Height: 1.40m, Mobile design with four wheels
Fan motor protection: Water drop proof

Speed: No Speeds Adjustable
Fan blade: Aluminum
Tilt adjustable: 10 degrees up and dwon
Oscillation:90 degrees automatically

 PACKING



 CONTAINER

G.W.: 42.00KGS

N.W.: 40.00KGS

PACKAGE: 0.33CBM

2 CTNS/SET



20GP:80SETS

40HQ:200SETS

40GP:160SETS



·         Applications:

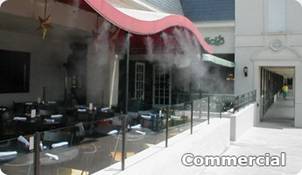

Cooling: Outdoor restaurants , Entertainment areas, Stadium , Sports areas , Airports ,Bus stations, Exhibitions, hotels, Farms, zoos, etc.

Dust suppression: atmosphere dust removement, mainly to be used in the farm and mine to control the pollution

Increasing humidity: spinning mills, cotton storehouse, park, greenhouse,labs, flour factory, etc.

Agriculture: poultry farms, mushroom plants, riding arenas, kennels, ensures proper humidity levels and suitable conditions, improves the operations for al kinds of livestock industries.

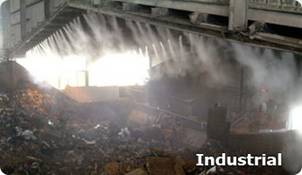

Industry: Hardware workshop, machine workshop, Printing and Dyeing,shoemaking,plastic, mold, die-casting, heat treatment,glass making, painting, electroplate, electron,chemistry, metallurgy, leather,toy-making, Home Appliances,etc.

Special effects of mist: Gardens, zoos, malls, fairs, movies sets, water features, fountain, used for creative fog effects.

The Zouway 2010 Cooling System line in made up of 16 units that meet the needs of various market areas. It can be used both for household as well as business and industrial applications.



misting fan
